Z-Type Conveyor
CZBC

  • Home
  • Z-Type Conveyor
CZBC

Main Characteristics

  • Aluminium Extrusion 30X60 Profile

  • Bonfiglioli Gear Box.

  • 0.25 Hp (.18Kw) Hindustan Motor Make 3 Phase Motor

  • Panel Box With Auto, Manual switch

  • Trip Indicator

  • Robot Interfacing

  • Driving & Driven Roller Dia 60 mm

  • Thk/Skf /Fag Bearing

  • Caster Wheel 2 Break 2 Free

  • PVC Belt 2 mm Thickness

  • Temperature : 10°C to +80°C

Drive Unit

  • Power
    :

    1380 RPM (50Hz)

  • Voltage
    :

    I/P 415 Volt AC O/P 415 Volt

  • Std installation
    :

    on left-hand side with fixed drive

  • Gear ratio
    :

    1:46

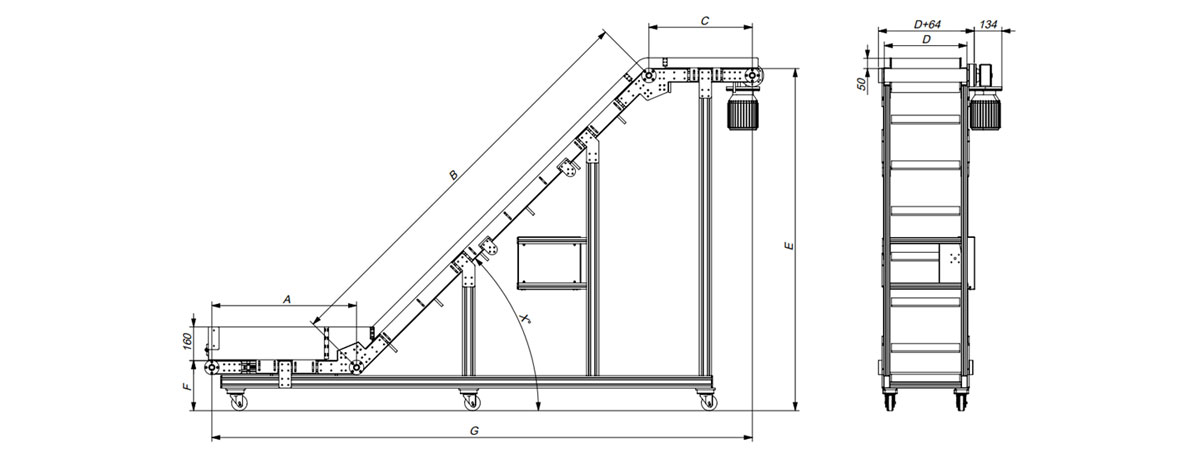

Standard Dimensional Features

CZBC

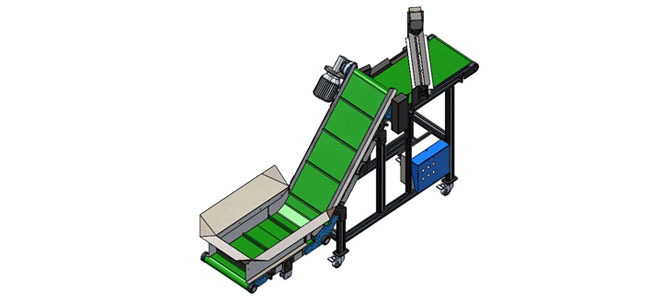

Configurations

CZBC

  • A machine chute drop a Parts & Runner on the conveyor.

  • Parts and runner are moved on a conveyor belt, and a separator directs the parts into one area and the scrap into another.

  • A part runner separator It maintains smooth flow, reduces errors, and improves efficiency in automated systems, making it ideal for manufacturing and packaging lines.

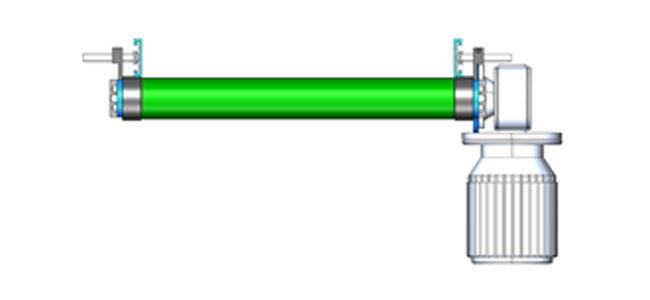

Side Containment Panels

CZBC

  • Side Guard Height (Standard)- 50mm

  • Side Guard Adjustment- 0 mm to 50mm

  • Available in- SS, Acrylic, MS, Nylon

  • Corrugated Side Wall

  • Belt Clit

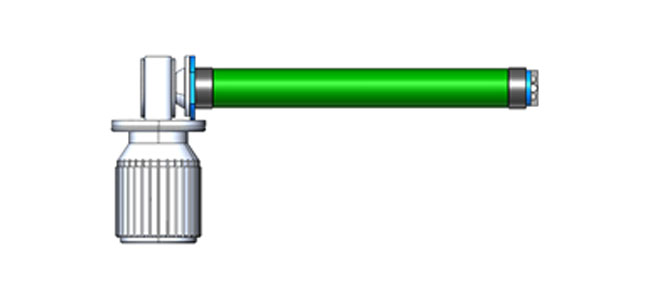

HEAD ROLLERS

CZBC

  • Head Roller Diameter- Dia 60

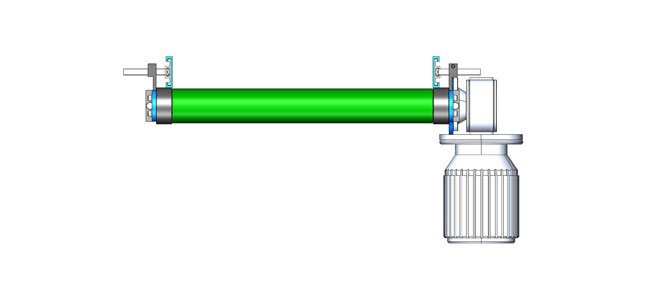

DRIVE UNITS

CZBC

Roller Dia-60

  • Gear Ratio

    :

    Belt Travel Distance

  • 1:46
    :

    6 Mtr/ Min

  • 1:10
    :

    25 Mtr/ Min

Roller Dia-40

  • Gear Ratio

    :

    Belt Travel Distance

  • 1:46
    :

    10.15 Mtr/ Min

  • 1:10
    :

    17.34 Mtr/ Min
